Wedotank. Controlled media supply under pressure.

Wedotank reliably supplies FluxJet nozzles with pressurized liquids—for consistent dosing results and clean processes. Optionally available with sensors, pressure control, or automated refilling.

Request a quote

Typical applications of Wedotank

Flux supply in soldering systems
selective or wave

Thanks to a wide range of connection options, you can easily integrate the Wedotank into existing systems.

Lubricant supply
Constant, automated, protected

Wedotank allows for a continuous supply of lubricants – ideal for machines and production lines.

Fluid supply
for cleaning, evaporation, or atomization processes

Thanks to a wide range of connection options, you can easily integrate Wedotank into existing systems.

How does Wedotank support your application? Let's talk.
Request service

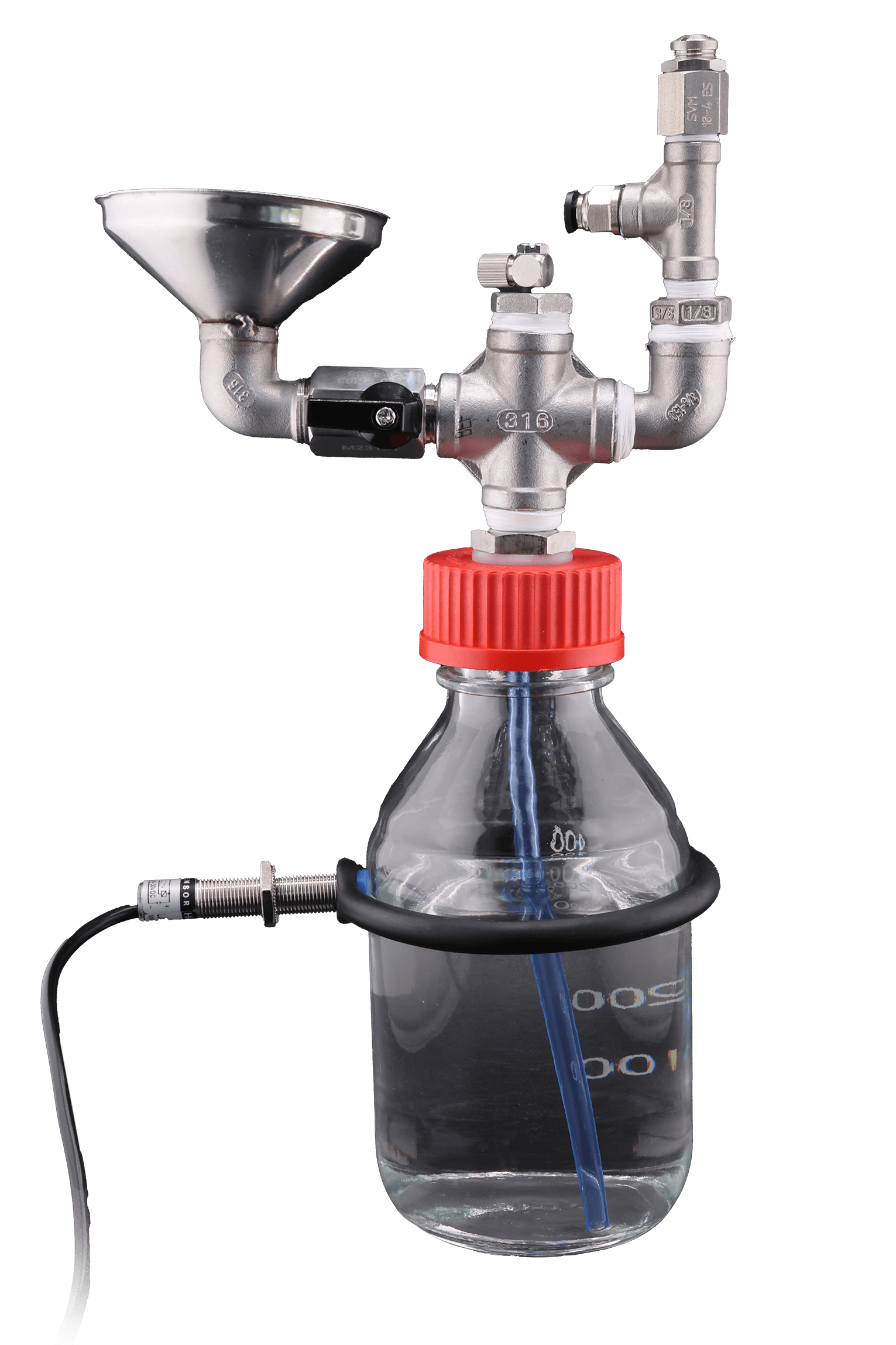

How does Wedotank work?

Wedotank works with a compressed air-assisted media supply: an external pressure source supplies the tank with air, which transports the medium in a controlled and even manner from the container to the application unit—without the need for a mechanical pump.

Media outlet – standard 2/4 mm hose connection

Possible contaminants settle at the bottom of the container and are not transported further.

Filling – Automatic or optional with funnel

  • The container never needs to be opened for refilling, which leads to greater occupational safety, cleanliness, and easier handling.

  • Searching for funnels and dripping does not contaminate the working environment

Sensor – easily adjustable in height

  • No risk of leakage thanks to external sensor.

  • Sensoranzahl und Höhe kann individuell gewählt werdenThe number of sensors and their height can be selected individually.

  • Easy sensor testing

safety valve

  • For your increased occupational safety

  • Provides a high level of safety in the event of faulty pressure control or operating errors

Compressed air supply – standard 2/4 mm hose connection

  • Wide range of connection options – easy to customize

container lid

  • Medium contact only with chemically highly resistant PTFE container lid

  • Easy opening for possible cleaning

container

  • Glass container allows easy checking of fill level and possible contamination

  • Highly resistant to almost all chemicals

  • Pressure resistant up to 8 bar – approved only up to 2.5 bar

  • Available in various sizes

What are the advantages of Wedotank?

Controlled media flow:

Compressed air ensures uniform, stable delivery without pulsation.

High level of occupational safety:

The tank does not need to be opened for refilling – no contact with the medium, no vapors.

Visual inspection:

The glass container allows you to check the fill level and impurities at any time.

Chemical resistance:

All parts that come into contact with media are made of high-quality, resistant materials such as PTFE and borosilicate glass.

External sensors:

Level sensors are individually height-adjustable and easy to retrofit—with no risk of leakage.

Modular expandability:

Optionally available with pressure control, digital display, magnetic stirrer, or ATEX-compliant design.

Flexible integration:

Standardized 2/4 mm hose connections for media and compressed air supply facilitate integration into your systems.

Made in Germany:

Quality that has been tested – every tank is tested before delivery.

We do Info. Data sheet for download.

Download the Wedotank data sheet now.

Download now

Contact

We Do Your Job.
Contact us.

Wedotec GmbH

Carl-Friedrich-Gauß-Ring 5
D-69124 Heidelberg

mail@wedotec.com

Format: jpg, pdf, png / max 5mb
* Required field

FAQ about Wedotank

We offer both empty containers with level indicators and versions with sensors. A suitable solution can be provided depending on the application.
