The Original
FluxJet 2. Precision meets reliability.
Typical applications
of FluxJet 2

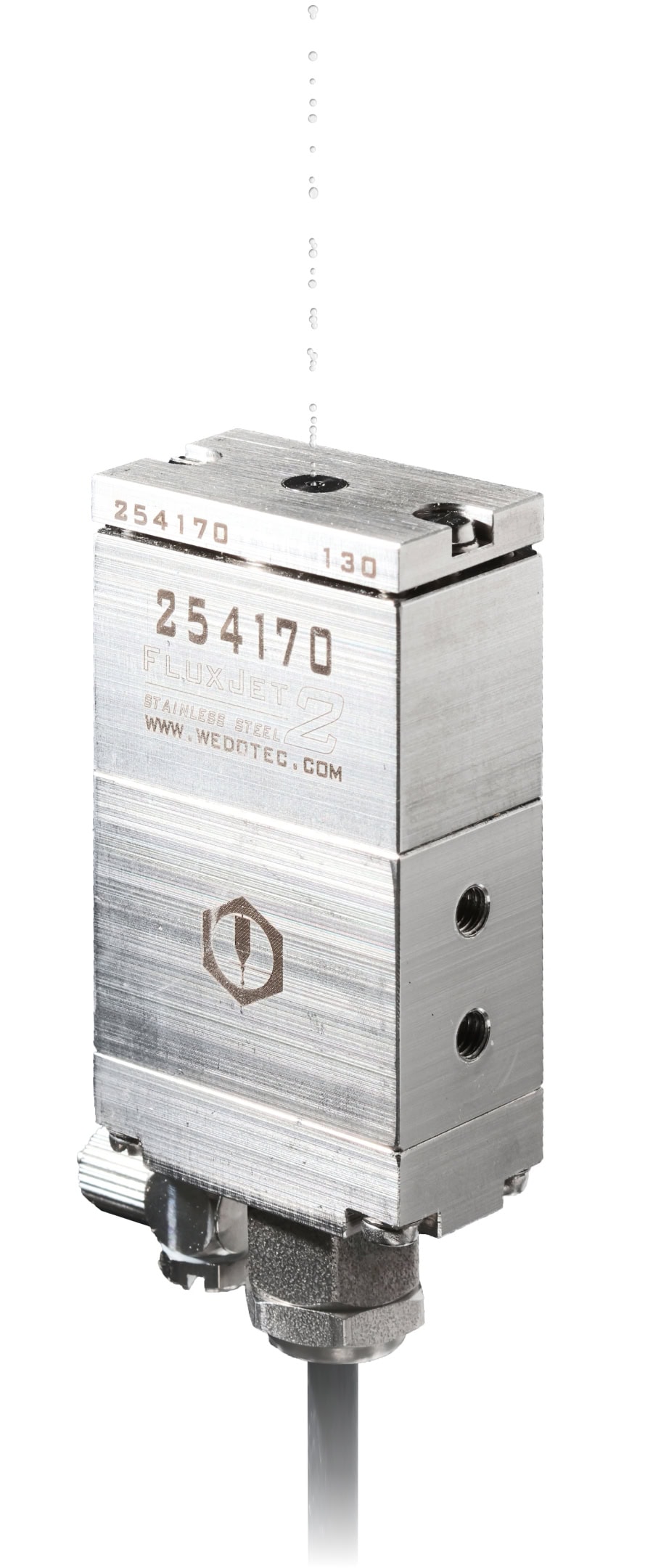

How does FluxJet 2 work?
The nozzle has an integrated valve that is controlled by a solenoid coil. The media is applied under pressure – contact-free and finely dosed. The nozzle body is made of extremely wear-resistant sapphire and enables precise drop application on an alcohol or water basis.
Sapphire nozzle stone
- Special geometry for precise beam
- Low wear
Nozzle plate
- Removable for easy cleaning
- Adjustable for precise beam adjustment
Metallic separation of media-contacting and electrical parts
- High operational reliability
- High durability
Fastening
- Stable, simple mounting
- Pass holes for precise, consistent alignment after reassembly
Media connection
Wide range of connection options
Control
Simple and versatile control options
Electrical connection
Various plug connections possible
We do Info. Data sheet for download.
Download the FluxJet 2 data sheet now – with technical specifications, connection values and possible applications.
What are the advantages of the FluxJet 2?
100% precisely adjusted nozzles
Extensive experience with well over 10,000 FluxJets sold
High robustness thanks to stainless steel or titanium housing and sapphire nozzle
Also suitable for aggressive media
Also suitable for flux with high solid content
Compact design & easy integration
Made in Germany – in use for over 20 years
Contact
We Do Your Job.
Contact us.
Wedotec GmbH
Carl-Friedrich-Gauß-Ring 5
D-69124 Heidelberg
FAQ about the FluxJet 2
What are the differences in beam quality?
A jet stream can be assessed according to the following criteria:
- Beam range: How far does the beam reach with sufficient quality?
- Accuracy: How large is the angular deviation of the beam?
- Fan out: From what beam distance and how strongly does the beam fan out?
- Drop size: How big are the drops?
- Drop consistency: Many small drops or one large drop
- Shot volume: How much liquid is sprayed per shot
What are the most important factors influencing beam quality?
The spray quality depends on the geometry of the nozzle valve, the settings, and the environmental conditions:
- Frequency, duty cycle, pressure, voltage, control
- Geometry: nozzle stone, nozzle seal, relative distances
- Environment: Temperature of the FluxJet 2 and the medium, air circulation
What installation positions are possible with the FluxJet 2?
Can you repair the FluxJet 2 yourself?
In the event of a malfunction, the nozzle is often dirty. This can be remedied yourself with a little technical knowledge. Ask for instructions. For more serious problems, we recommend having the device adjusted at a service center.
What materials is the FluxJet 2 available in?
Standard: Stainless steel (1.4305) with Viton seals.
Optional: Grade 5 titanium with Viton seals.
Who developed the FluxJet?
The FluxJet was developed by Wedotec in 2002. Since then, thousands of devices have been put into use.
Does Wedotec ship worldwide?
Yes. Customs duties may apply.
How long will Wedotec continue to supply spare parts?
Spare parts are available for almost all FluxJets manufactured in the last 20 years.
What is the best way to store my FluxJet?
During longer periods of downtime, blow out the Flux-Jet with compressed air at a maximum pressure of 2 bar and store in a dry place.
