Controls optimally matched to FluxJet 2

Precise dripping results require not only a perfect nozzle, but also the right control system. Wedotec offers robust, precisely coordinated systems for reliable activation of the FluxJet 2.

Request a quote

Typical solutions
for control systems

SG control unit
flexible, manually adjustable, available in duplicate

The SG control unit generates frequency and pulse energy for the FluxJet 2. Manual adjustment of drop size and frequency, compatible with NPN and PNP signals. Variants: SG 1/1 (one valve), SG 1/2 (two valves in parallel)

Driver output stage
Compact, powerful, controllable

Ideal for external signal amplification: The driver output stage processes square wave signals and supplies the FluxJet 2 with the necessary pulse current. Includes enable input for process control.

Resistance adapter
Simple, direct, efficient

For specific input signals (e.g., 5 V / 2 V step signal) – can be used directly without additional components. Ideal for compact system solutions.

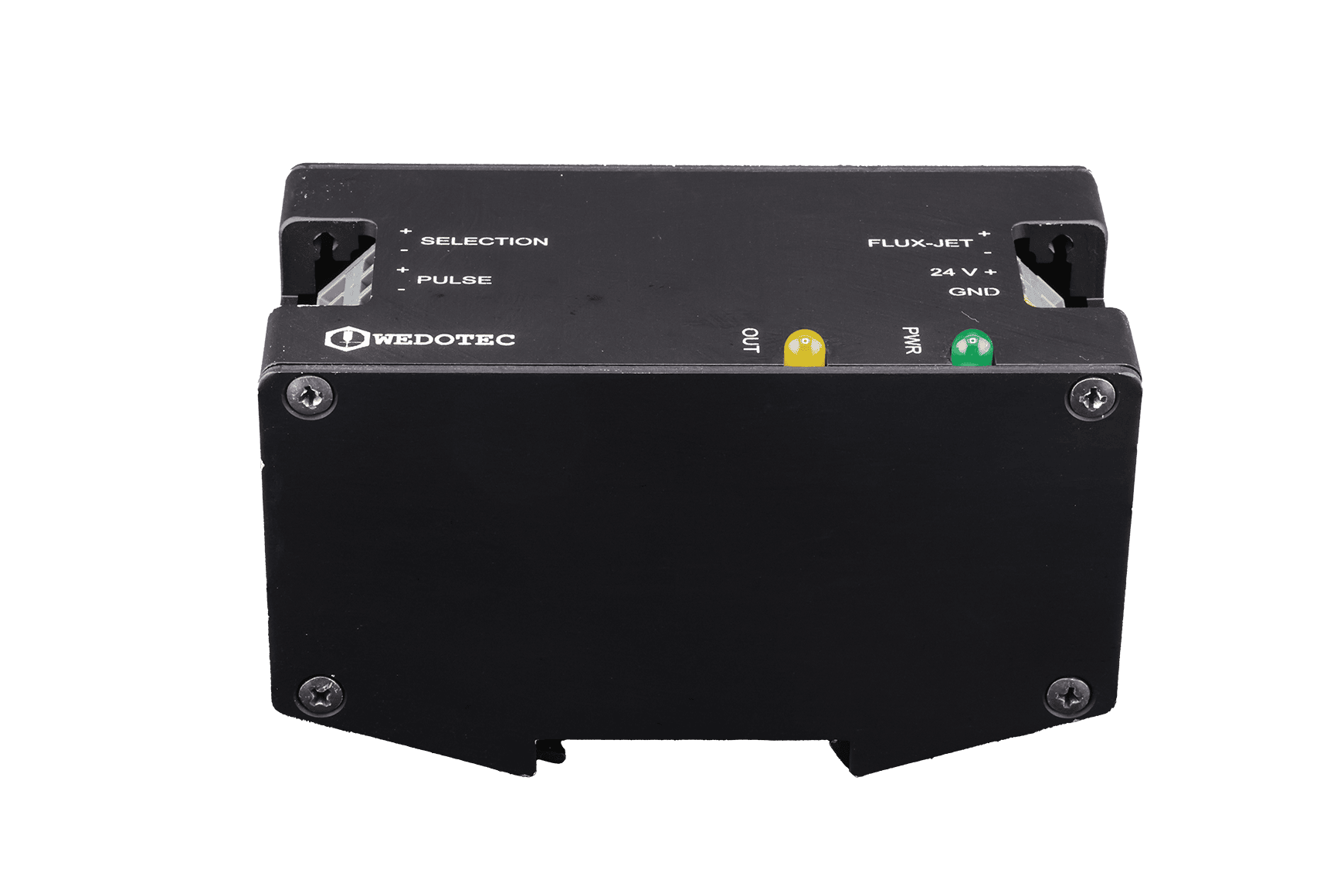

What can the Wedotec driver stage do?

Connections

  • With Selection, the Flux-Jet 2 can be easily controlled with an on/off signal.

  • Connection for Flux-Jet 2 clearly marked

Status indicator

  • Easy to check whether Flux-Jet 2 is being controlled

Housing

  • HousingHousing made of robust aluminum to dissipate the heat from the resistor

Voltage indicator

  • Easy to check whether power is connected and everything is working properly.

Connections

  • Simple plug connections for voltage and signal inputs

  • Multiple safeguards in the circuit in case of faulty connection

Assembly

  • Easy installation in the control cabinet on top-hat rail for 35 mm top-hat rails

What are the advantages of Wedotec controls?

Compatible with many signal formats

(NPN, PNP, square wave, step)

Designed for 24 V DC and 230 V supply voltages

DIN rail mounting possible

Robust construction – Made in Germany

100% tested – for reliable performance in continuous use

Contact

We Do Your Job.
Contact us.

Wedotec GmbH

Carl-Friedrich-Gauß-Ring 5
D-69124 Heidelberg

mail@wedotec.com

Format: jpg, pdf, png / max 5mb
* Required field

FAQs about Wedotec controllers

The spray quality depends on the geometry of the nozzle valve, the settings, and the environmental conditions:

  • Frequency, duty cycle, pressure, voltage, control
  • Geometry: nozzle stone, nozzle seal, relative distances
  • Environment: Temperature of the FluxJet 2 and the medium, air circulation

That depends on the control system. With Wedotec power amplifiers, do not leave it open for longer than 60 seconds.

Please refer to the data sheet for connection options. Special requests are possible on request.

Standard: 40–50 mm. With special settings up to 100 mm.

The FluxJet was developed by Wedotec in 2002. Since then, thousands of devices have been put into use.

Yes. Customs duties may apply.

Spare parts are available for almost all FluxJets manufactured in the last 20 years.
